4″ API LOADING AND UNLOADING VALVE WITH SIGHTGLASS EQUIPTANK 741500/S2
27/04/2020

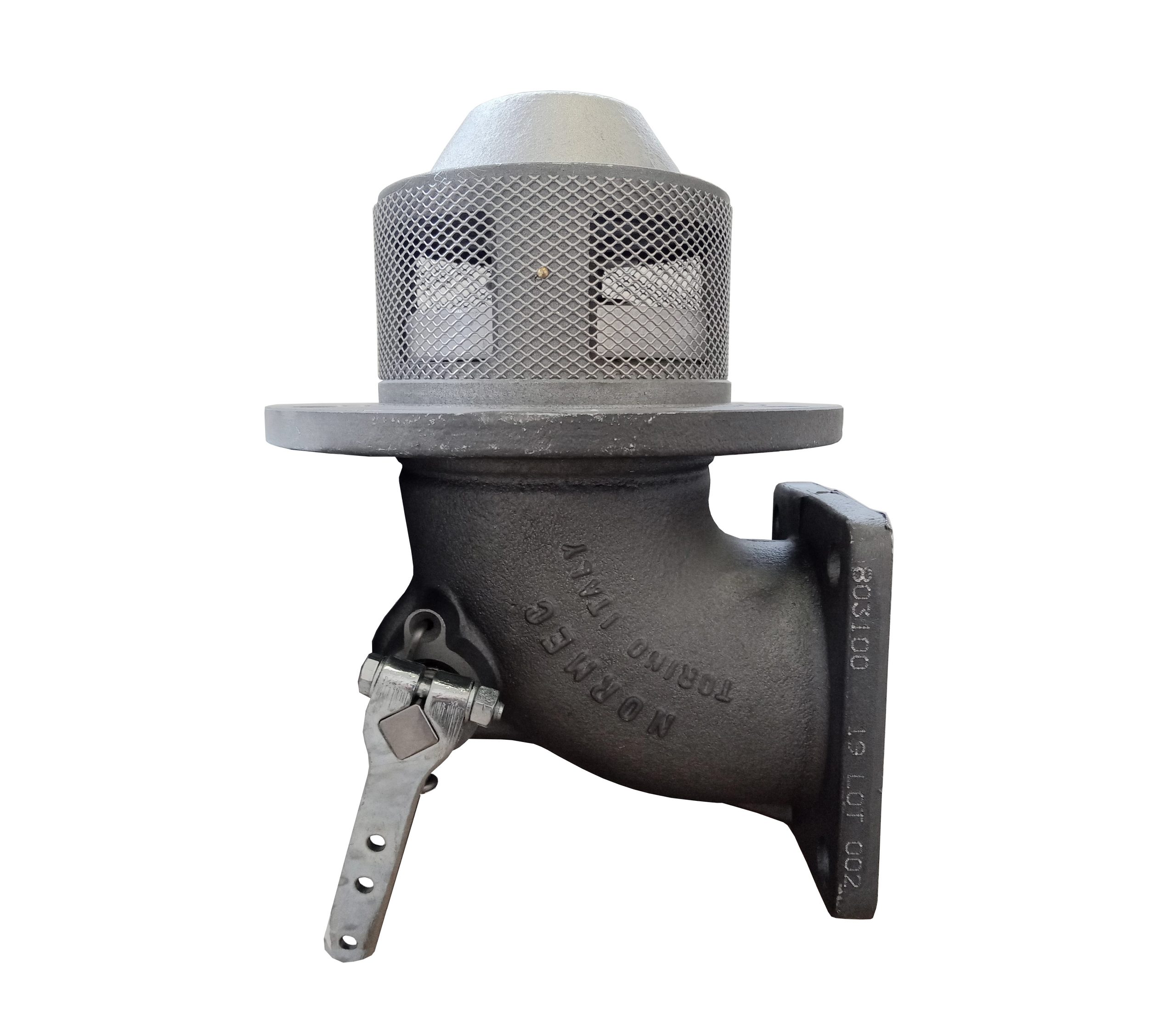

3″ MECHANICAL BOTTOM VALVE NORMEC 80 31 00
28/04/2020
4″ BOTTOM VALVE 1001 SERIES CIVACON
€492.45 + IVA
4″ bottom valve -pressure balanced EURO100-1B-AL40
1 in stock (can be backordered)
All EURO100-Line Bottom Valves in accordance with EN13308 (Non Pressure Balanced), EN13316 (Pressure Balanced), ADR and API RP 1004
Available models: Compact, Super Compact, 4” TTMA or TW outlet and T-Shape
Pressure balanced or non pressure balanced operation
Sequenced or non-sequenced operation
4” or DN100 connection
Lightweight pressure die-cast for improved strength and reduced weight
Hard anodized and stainless steel internals
Stainless steel filter/strainer
Shear Groove to prevent spillage in case of an accident
Superior flow rate:
– up to 2.500 litres/minute
– no moving parts in the flow path
Viton GLFT seals
Valve service inside of the compartment
Manually openable in case of emergency
General specifications
Nominal size 4” or DN 100
Working pressure 5 bar (500 kPa)
Operating air pressure 4 bar
Maximum flow rating 2.500 litre/minute
Seals Viton GFLT
Working temperature -20 °C to 70 °C
other temperatures on request
Weight EURO100-1 4,6 kg
